The speed, flexibility, and quality of fiber laser cutting make the ISEO A2 model laser machines the ideal tool for producing metal components that require complex cuts, with various shapes, even on highly reflective metals.

The absence of the spiked slat bed, the smooth and perfectly linear sheet metal support in the cutting station, and the repetitive band working mode ensure high cutting quality and the ability to produce parts of any length while maintaining a compact and unchanged laser machine layout. The automatic unloading of the produced parts, separated from the scrap, allows for unattended production and a streamlined process that requires interaction with other systems and various operating machines.

 Production Capacity: Coil width from 250 to 2000 mm

 Sheet metal thickness: from 0.3 mm to 6 mm

 Performance: Maximum piece length: no limits

 Laser source power: from 1 kW to 10 kW

Speed:
Operating unit axis movement 80 m/min
 Sheet metal feed movement 40 m/min

Precision:
Operating unit axis positioning +/-0.02 mm
Sheet metal feed positioning +/-0.1 mm/meter

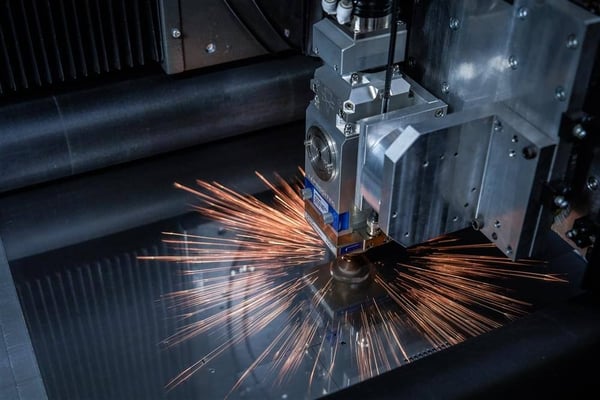

Tools:Laser cutting head with motorized focus positioning

Options:
Laser marking unit
Workpieces unloading trapdoor
