Coil cutting: how it works, advantages and related machinery

• Coil cutting: a brief description
• How the process takes place
• The pros and cons of coil cutting
• Insights and techniques of coil cutting
• Coil laser cutting
• The related coil cutting lines
• Coil straightening cutting line
• Is it possible to cut steel from the coil?

Coil cutting: a brief explanation

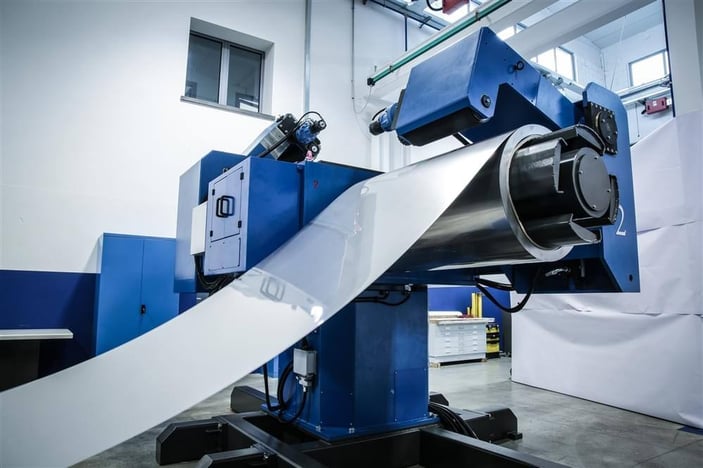

Coil cutting is a metal cutting process that consists of feeding the machine from the coil and not from metal sheets. Processing from the coil requires specially designed machines, an investment that leads to substantial time and money savings in the medium to long term: by feeding from the coil, the machine works without interruption for several days. In coil cutting, the coil-fed machine unrolls the coil and performs the cutting in the same process, producing the semi-finished or finished part, ready to move to the next step in the assembly line.

How coil cutting process takes place

Coil cutting occurs in several stages:

1. First, the coil roll is placed into the machine entry opening;
2. The interpolation with the transverse axis of the cutting head makes possible the progression of the sheet metal inside the machine;
3. At this point, coil cutting is done by bands of varying lengths, usually in 500-mm bands;
4. Within these bands, all necessary cuts are carried out without interferences, even in the case of details with a pronounced length.
5. Eventually, the machine outputs the semi-finished or finished item.

The process of cutting itself works by passing a targeted and precise laser beam through the material to be processed. Laser optics and CNC (computer numerical control) are used to address the laser beam generated. A material-cutting laser uses a motion control system to follow a CNCcode of the model to be cut on the material. The laser basically melts the material on which it is directed, so the concept is more similar to fusion than to the actual cutting in a traditional way. This means that the cut can be easily done from lightweight materials such as fabrics, to stronger metals and precious stones such as diamonds.

As the machine is equipped with a laser, the working area is fully enclosed, according to current safety regulations. Coil cutting improves sheet metal processing by cutting faster than punching machines and with significant production autonomy due to continuous feeding, reduced maintenance requirements, and optimized unloading of cut parts.


The pros and cons of coil cutting

Cutting from the coil does have numerous advantages. Even if the purchase of a coil cutting machine requires a greater investment, this is widely paid off in the medium to long term. It may be seen as an initial disadvantage; actually, we know that without investment in new technology, companies would not grow.

Here is a list of pros why you should choose coil cutting technology:

• Metal sheet feeding takes place constantly and automatically, no need to recharge the metal sheet fold.
• Optimal and flexible management of sheet metal loading and unloading - you decide when the machine should stop working, not the lack of metal sheets.
• Increased production speed - due to the automatic feed, the production doesn’t have to be stopped from time to time.
• Work time-saving and consequently less manpower.
• Less clutter - one machine can do the work of two or more machines.
• Coil costs definitely less than precut metal sheets.

Insights and techniques of optical-fiber laser coil cutting

Produtech’s coil cutting process uses optical fiber laser technology to cut. Compared to the CO2 laser, optical fiber has many pros. In particular, fiber lasers require less maintenance and produce more precise outputs.

How does laser cutting work? In fiber laser cutting machines, cutting is done by transmitting the energy beam directly from the diodes and fiber cables. Due to its reduced wavelength, it has better beam absorption of the cut material, allowing the cutting of metals such as brass and copper.

With a wavelength of just 1,064 micrometers, fiber laser cutting machines produce an extremely low cutting point (up to 100 times smaller than CO2) making it ideal for cutting reflective metal material. This is one of the main advantages of fiber over CO, along with reduced processing time, minimal maintenance, and increased productivity at equal cost.

Produtech: coil laser cutting supplier

Produtech is a supplier of coil laser cutting machines. Operating throughout the European and North American markets, we aim at helping companies achieve high production standards, reducing costs through the adoption of metal processing. Coil cutting is specifically suited for several industries:

• Automotive industry;
• Die, mold, and tool industries;
• Jewel industry;
• Medical devices manufacturing;
• Ceramic and silicon manufacturing.


The related coil cutting lines

Produtech has specialized in coil cutting by developing state-of-the-art coil cutting machines.

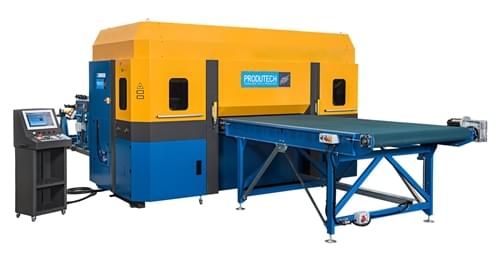

A top-tier product of the company is the punching laser cutting machine EffiCOIL which combines coil punching and cutting in the same process. This hybrid technology offers a remarkable adaptability to the most diverse industries, allowing to perform both procedures optimizing the overall production efforts.

The EffiCOIL machine working principle is simple: the electric punch outlines the desired shapes while the fiber-optic laser cuts with accuracy the metal sheet handling both internal and external contours. This synergetic procedure offers an unparalleled level of efficiency and excellent results without compromising the aesthetic of the overall project.

Another important feature consists of resources’ management. In fact, this coil cutting machine doesn’t need to load and unload raw materials, facilitating the entire process and making it even more swift.

Discover EffiCOIL


Coil straightening cutting line

Our coil straightening cutting machines entail two main lines of equipment that can handle different width dimensions and non-linear coils using the power of fiber laser cutting technology.

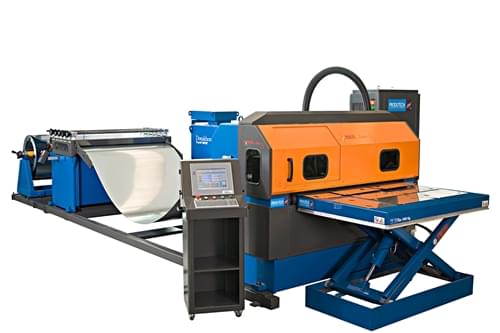

ISEO A1

The ISEO A1 machine by Produtech is capable of working coils through a coordinated movement. As a matter of fact, while the coil sheet with variable dimensions and length advances through special pliers inside the feed system, the required cuts are made within each band.

With such equipment, the workflow is more linear, without having to restart the whole process to load and unload material, even when handling exceptionally long components.


ISEO A2

The ISEO A2 automatic coil straightening system can easily manufacture components maintaining a high-speed production rate. A groundbreaking feature which differs from the ISEO A1 equipment is the presence of an additional Xa axisthat enhances the machine’s precision for impeccable results.


Is it possible to cut steel from the coil?

Produtech supplies equipment for steel and stainless coil cutting as well. This material demands specific know-how because of its hardness, which requires specific parameterization of the optical laser and the machine. For this reason, Produtech has designed three coil cutting machines that can effectively deal with the hurdles that steel and stainless steel coils can present.

• ALPI: the automatic movements of this high-speed machine can work with the most complex shapes as well as minimal, geometric designs. The cut work is accurate no matter how many holes, slots, and notches need to be produced. This coil cutting line by Produtech is wear and tear resistant.
• LANDE: this cutting coil machinery line by Produtech entails mechanical tools that don’t affect the superficial aesthetic of the final product. The innovative mechatronic system of the LANDE series provides highly accurate results by saving energy, time, and resources. Operators’ are facilitated in setting the right parameters specifically calibrated on the material the coil sheet is made of, guaranteeing not only precision, but also high efficiency with minimum maintenance.
• OROBIA: this is the perfect coil cutting line if you are interested in a compact solution. The OROBIA machines can work with different tonnages (from 10 to 20 tons), integrating the straightening units in a system which is a space-efficient system. Moreover, a precise cut-to-length coil production can significantly reduce raw material waste in order to enhance the whole procedure without affecting the quality of the project.
